AC230V 25M Flexible Linear Lighting

Quick info

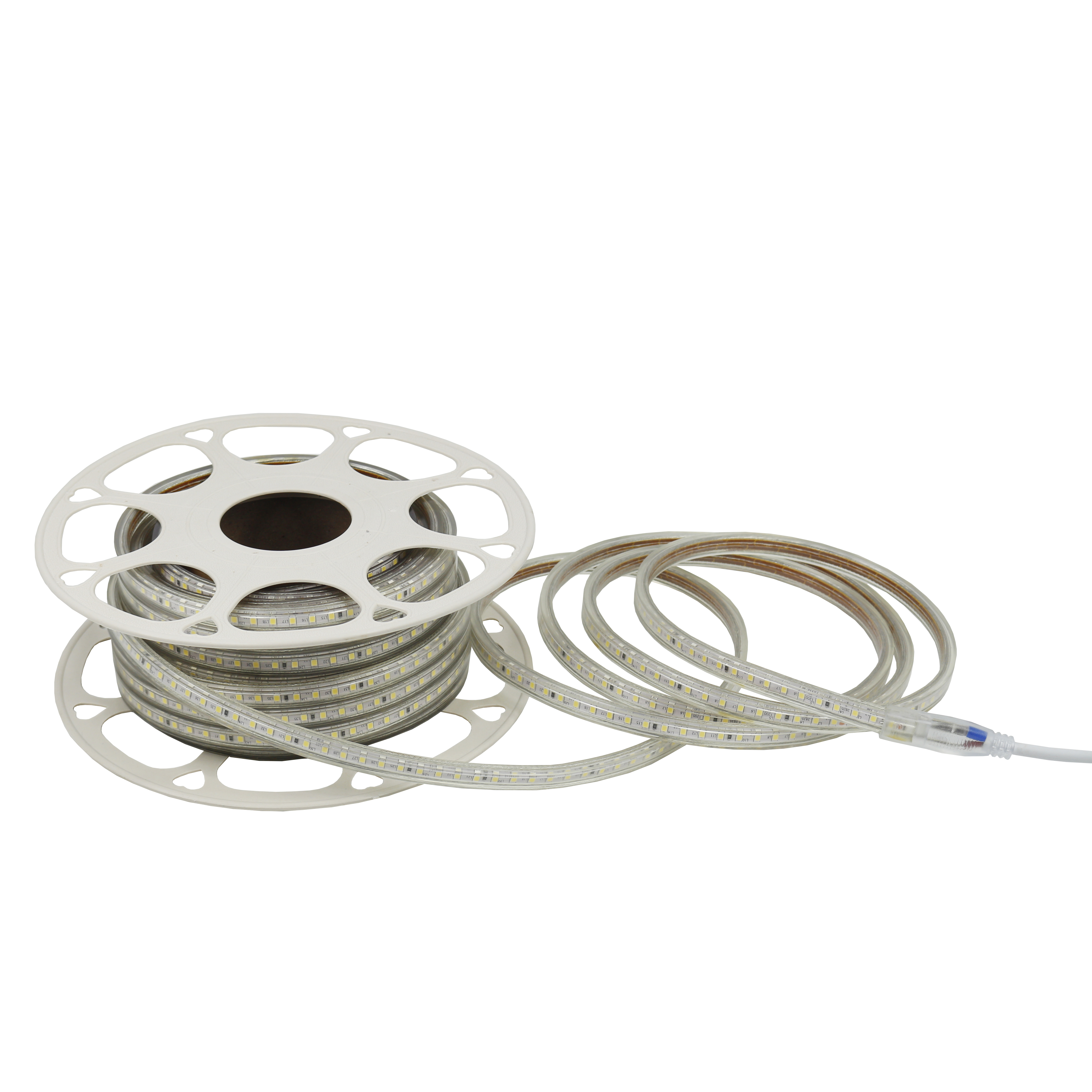

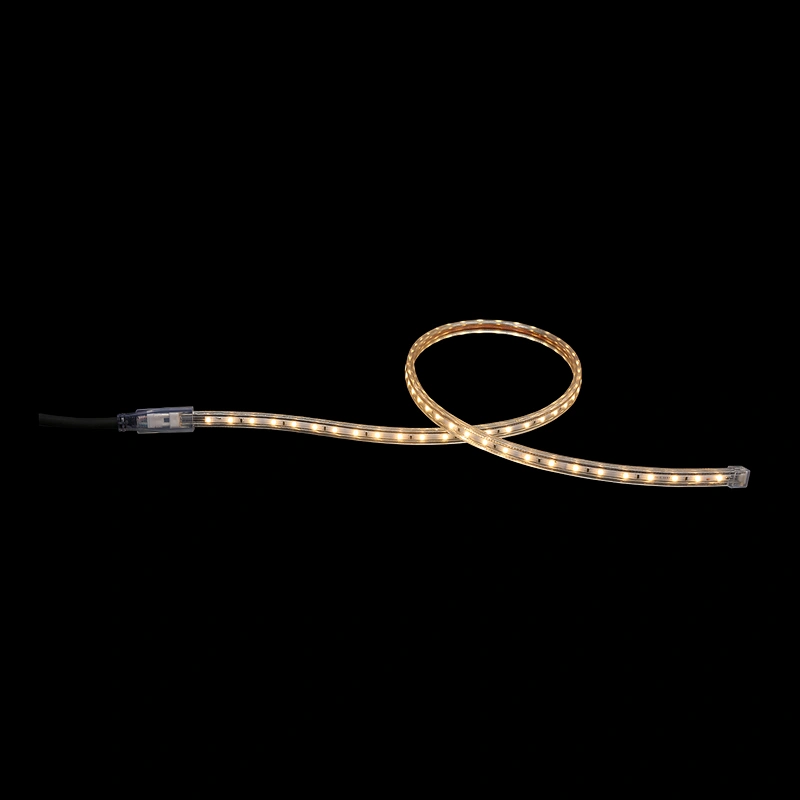

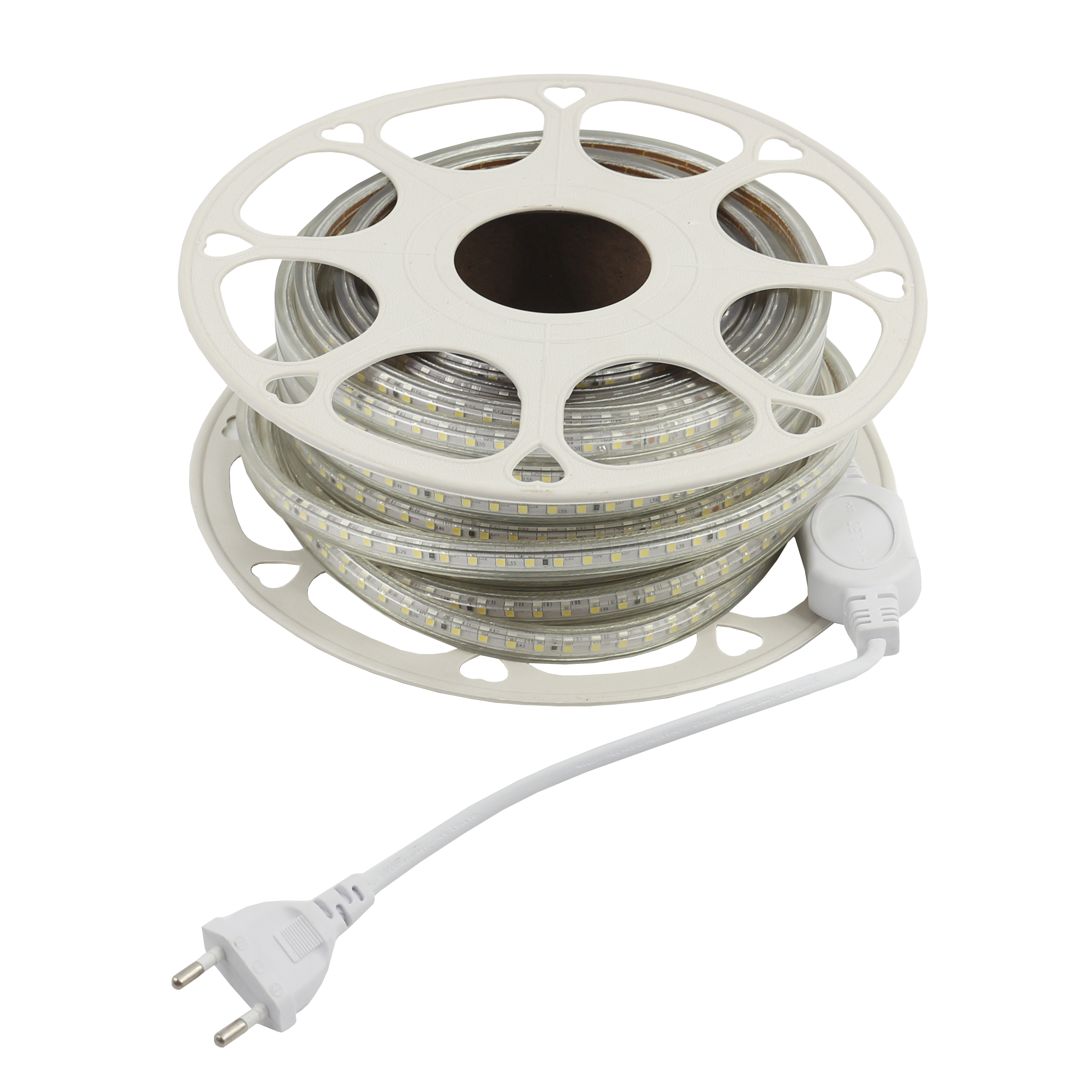

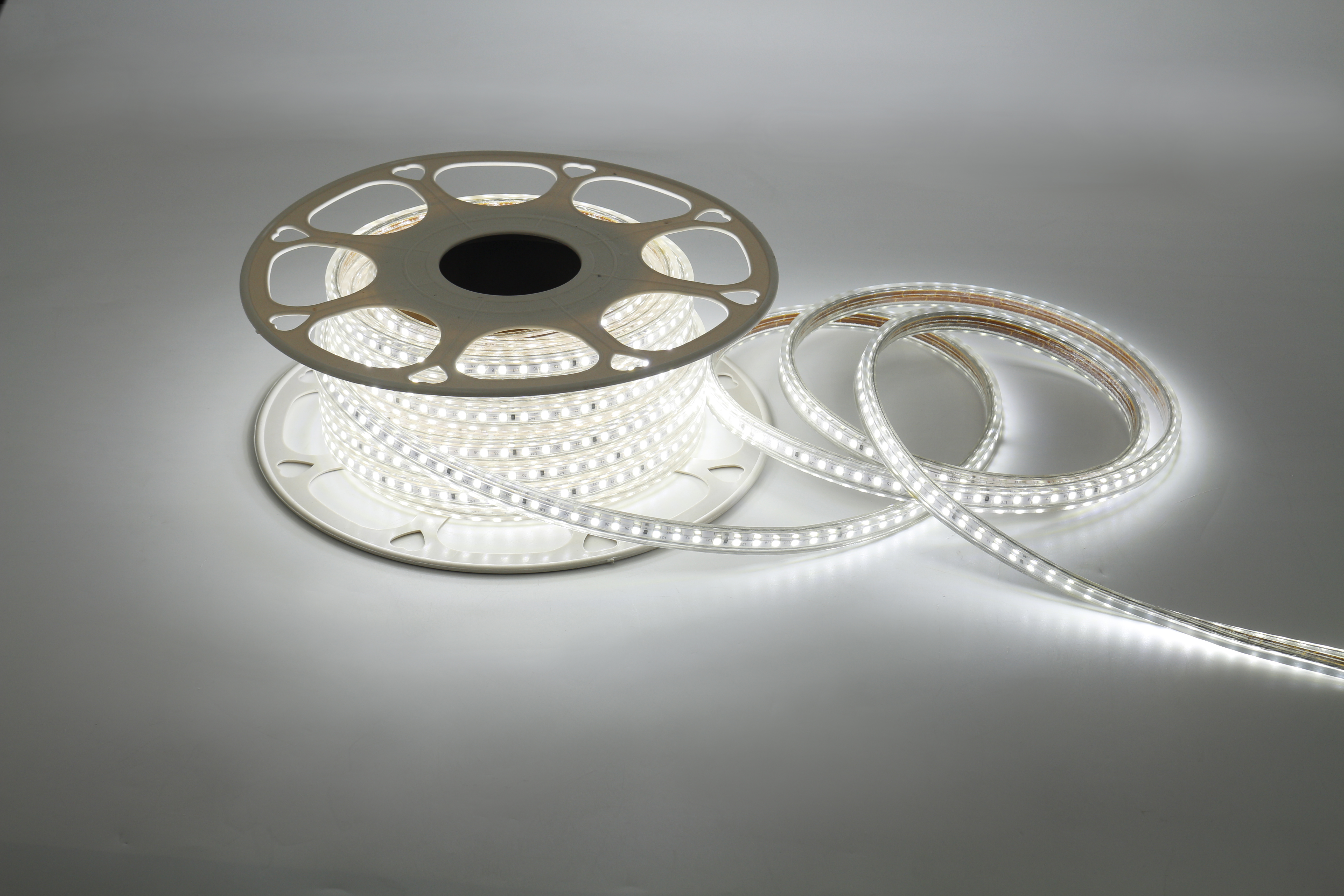

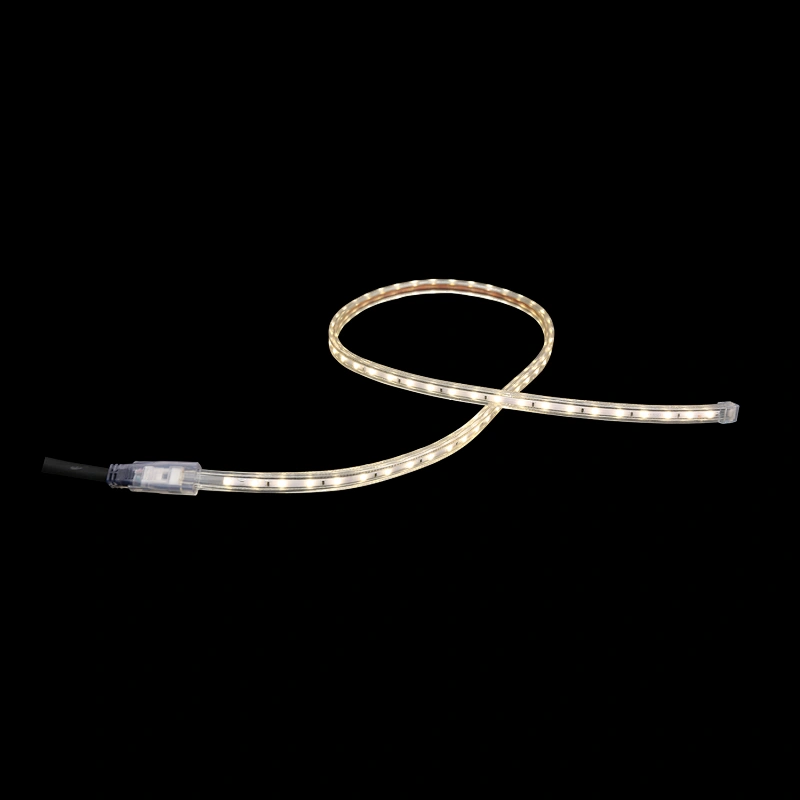

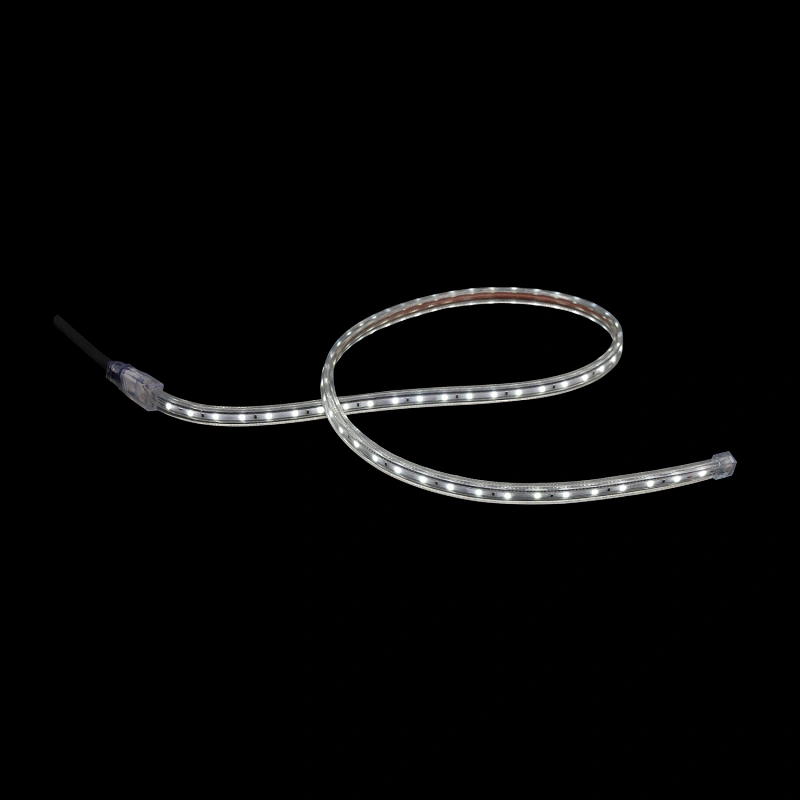

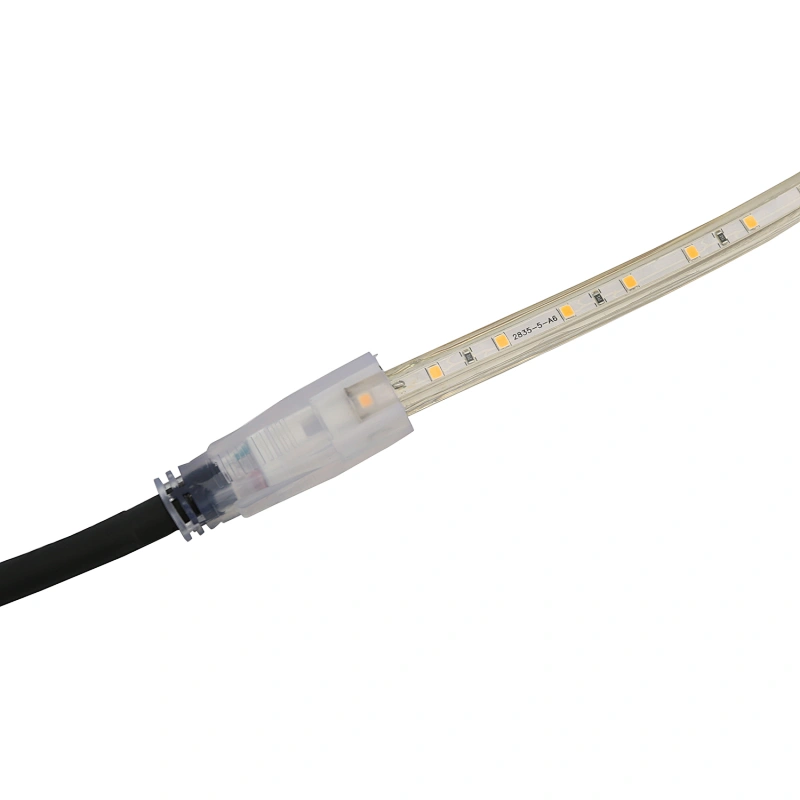

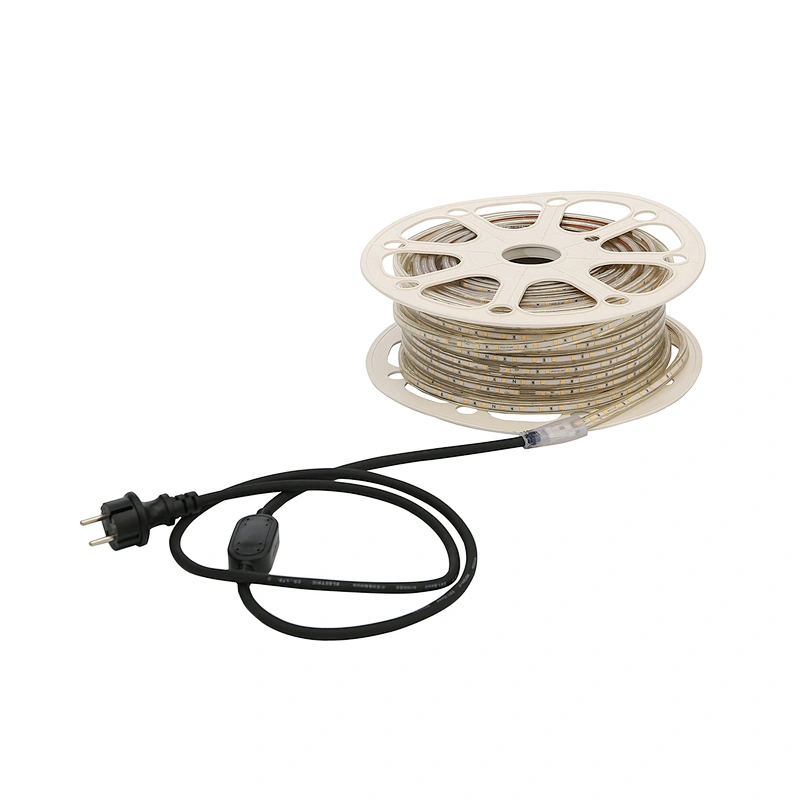

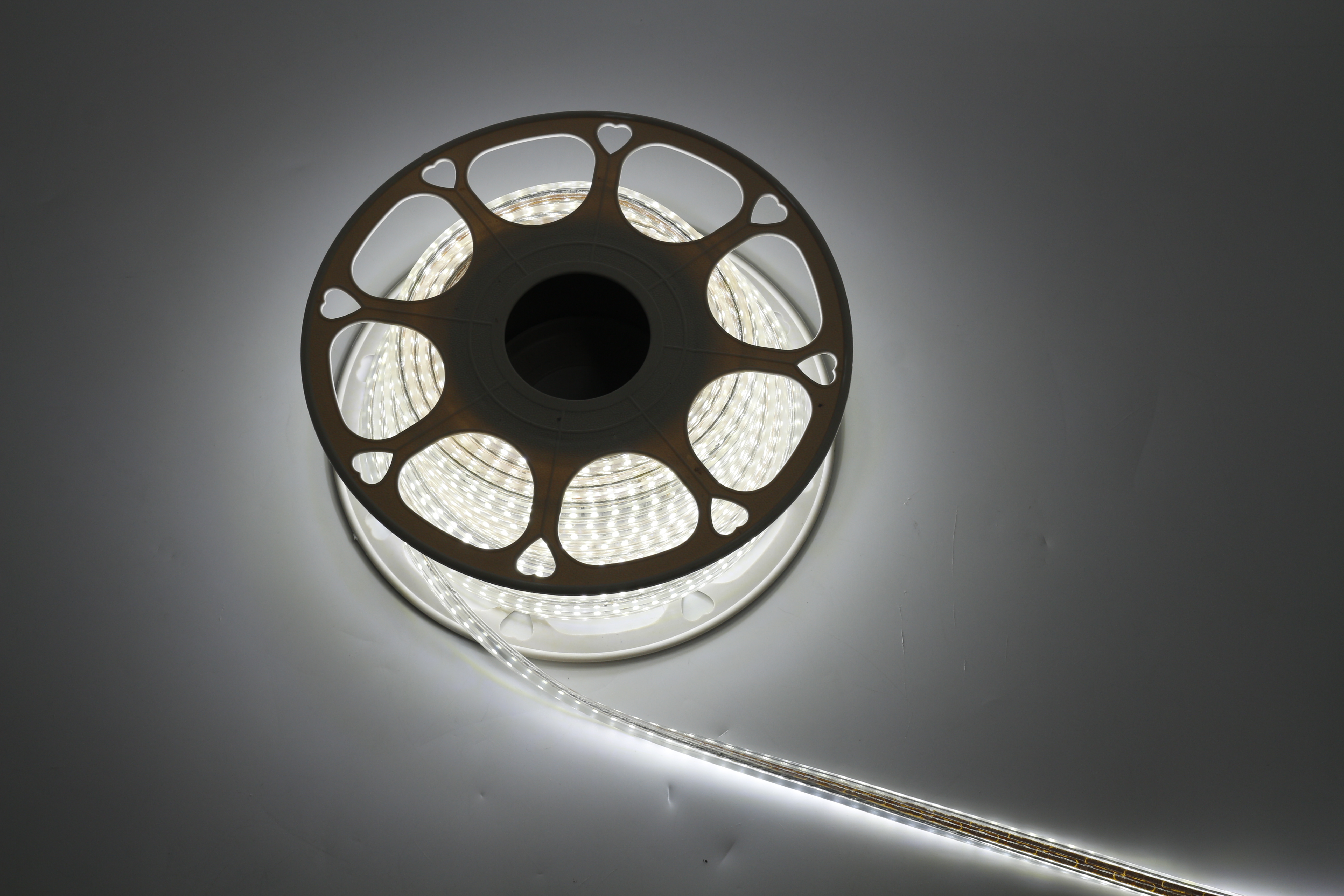

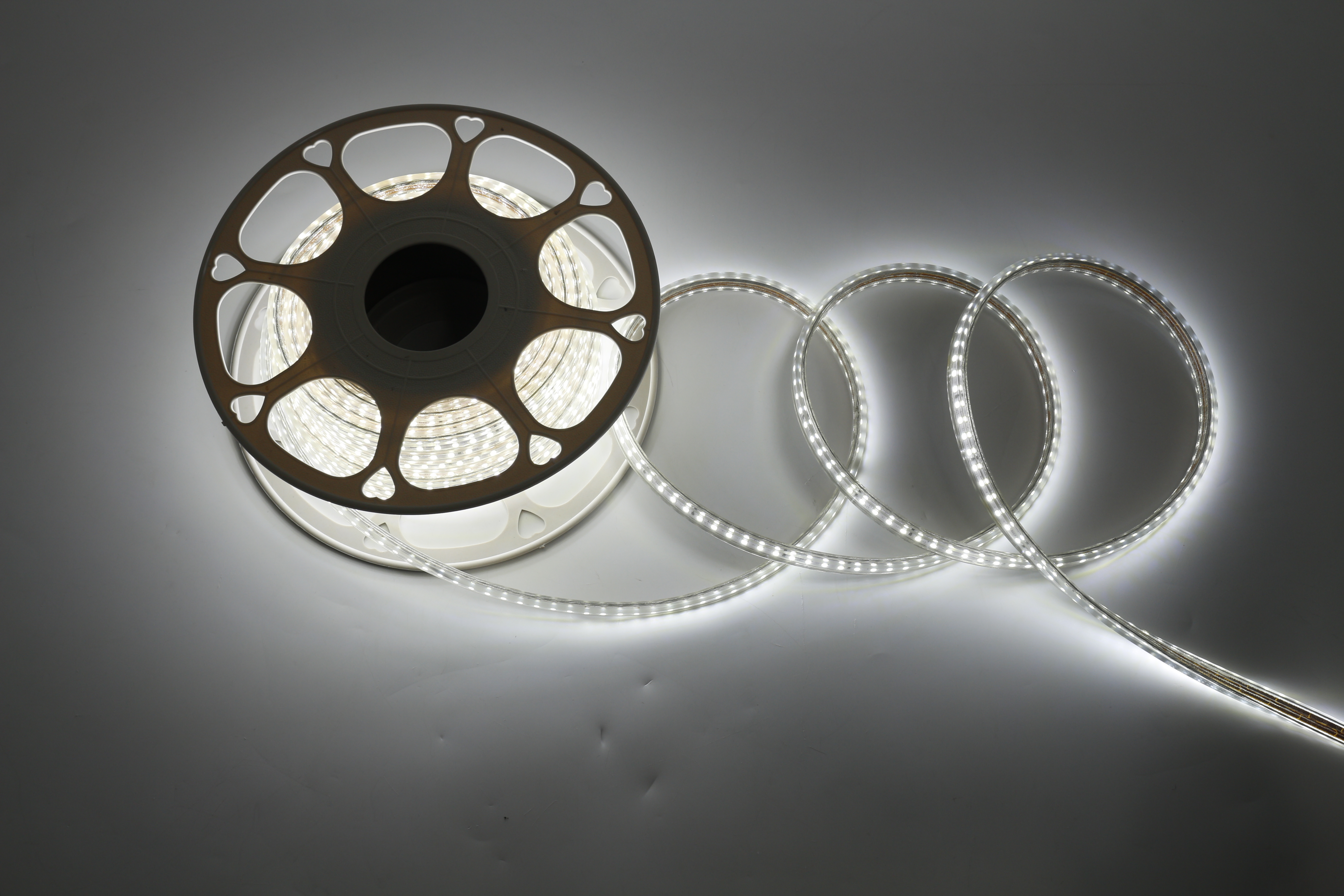

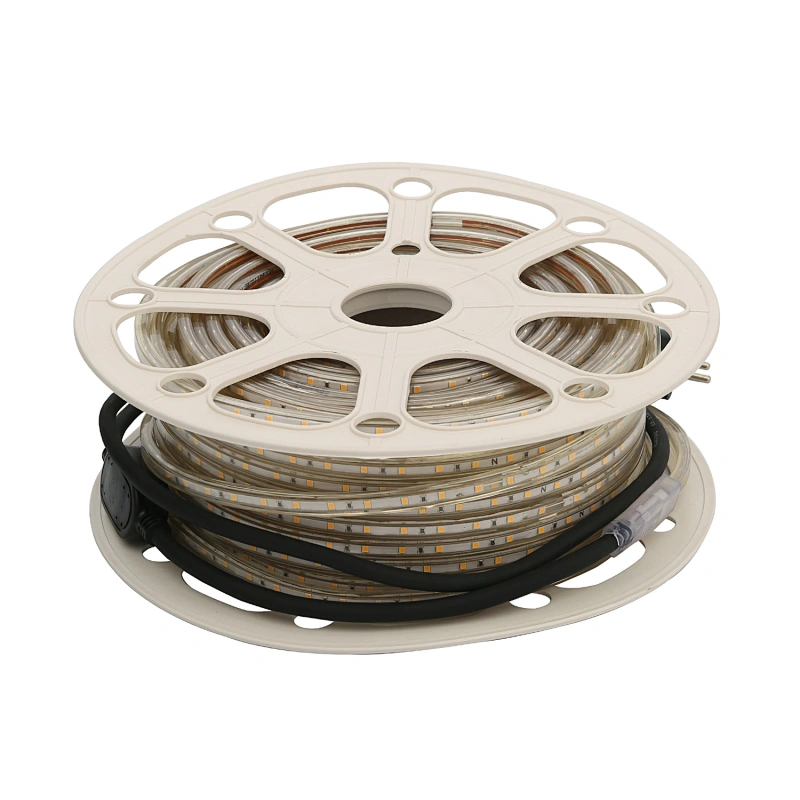

AC230V 25M LED Strip IP65 CE ROHS Flexible Linear Lighting

Model NO :
LD-SM25HN
Delivery :
FOB
Supply Ability :
15000 sets / Month
Country of Origin :
shenzhen,China
Stock Time :
10 Days

Product
Basic Information
Specification

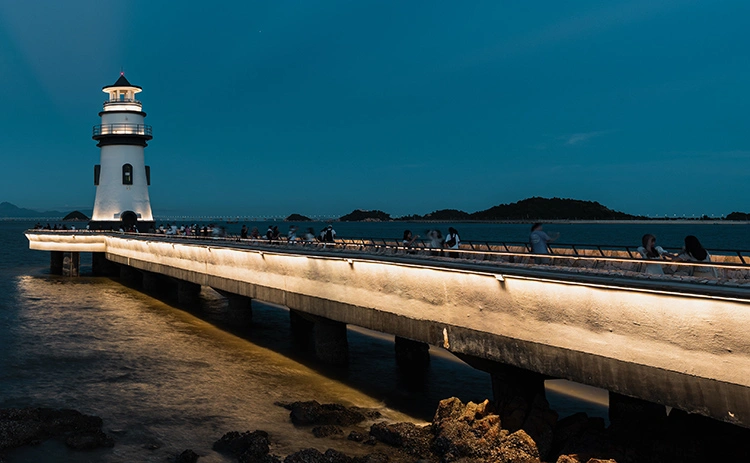

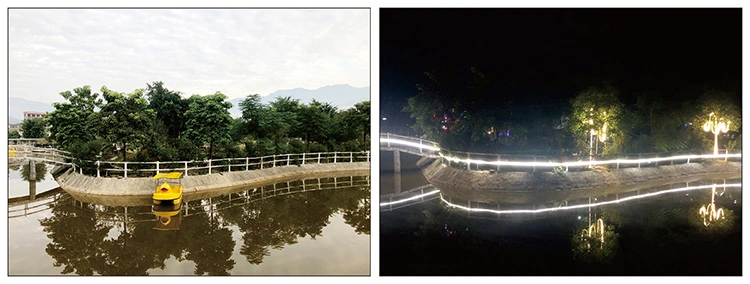

Application
Similar product

LED Strip Light Kit Outdoor | LED Strip Light Supplies - OML

1 This LED rope light use crystal clear PVC, environmental, durable, UV resistance, anti-corrision.
2 0.4W chip with high lumen output, meet your high standard.
3 IC control, can adjust the temperature automatically, to ensure long service time.
4 Ultra soft, no matter bend or wind up the strip light, it still works very well.
5 Energy-Saving and Longer-life span
6 Customized logo can be laser on the back of the strip light.

WARNING

• Always respect applicable legislation for working with electrical equipment in order

to reduce the risk of accidents.

• Avoid looking directly into the beam of light, as this will result in dazzling.

• Do not use the lamp near a naked flflame.

• Protect the mains cable from oil, heat and sharp edges.

• Luminaire is only suitable for direct mounting on non-combustible surfaces.

• The external flflexible cable or cord of this luminaire cannot be replaced; if the cord is

damaged, the lamp shall be destroyed.

• Always unroll the entire light rope before turning it on.

• The flexible luminaire is available as a spare part in case it is damaged. Contact your

local dealer or place of purchase to learn more.

• This lamp is compliant with the following directives (EMC and LVD):

Product features

Low energy consumption with high luminous efficacy
Single/double-sided LED strip light with powerful LED technology
expandable up to 100m with click&play
Optionally available with emergency battery
Minimal temperature development
Impact-resistant design (IK10)
Handle with integrated rubber band to lock the reel in place
Shock and vibration resistant
Quick and easy installation on walls, ceilings or design

Voltage:	230V~ 50/60Hz / AC100-110V 50/60Hz
LED Color:	3000K,4000K,5000K,6000K
Beam Angle:	120°
LED Package:	SMD2835
CRI:	Ra80+
Luminous flux:	800lm/M
LED Spacing:	144LEDS/M
Power::	225W - 4.5W/M
Ambient Temp.:	-20°C ~ +45°C
Lifetime:	30.000 hours (L70)
IP Class:	IP65
Width x Height:	13mm x 7mm
Length:	25meters
Measurements:	32x32x14 cm
Gross weight	5.5 kg
IK Class:	IK10
