led strip light 10M MultiFlex for WORK SITES
√Make sure the led strip is not connected to the power connector.
√Pull the strip completely out of the spool.
√Make sure there are no dangerous substances such as water, flammable gases or fine dust around the light strip.
√Connect the power cable to the 230V socket.
| Description | AC230V STRIP LIGHT BOX |
| LED Make | Epistar SMD 2835 |
| LED configuration | 120/144/180LED's per meter |
| Range fed from ONE side | 100m |
| Reel lengths | 3M/5M/10M |
| Operating temperature | -20- +50 °C |
| IP Rating strip | 65 |
| Power Consumption per Meter | 12W |
| Colour Rendering Index CRI | > 80 |
| Colour temperature | 3000K/4000K/6000K option |
| Luminous Efficacy | >100 L/W |
| Lumens P/M | >1200 |
| Supply voltage | 200-240VAC |
| Lifespan | >30000h |
| Warranty Lighting | 2 years |
| Fire Retardant | Yes |
| Outer covering | PVC coating |
| Dimensions | 8mm x 18mm |
| Connectors | Male/Female connectors |
| Tensile strength | +-25kg |
| Overheat protection | Yes |

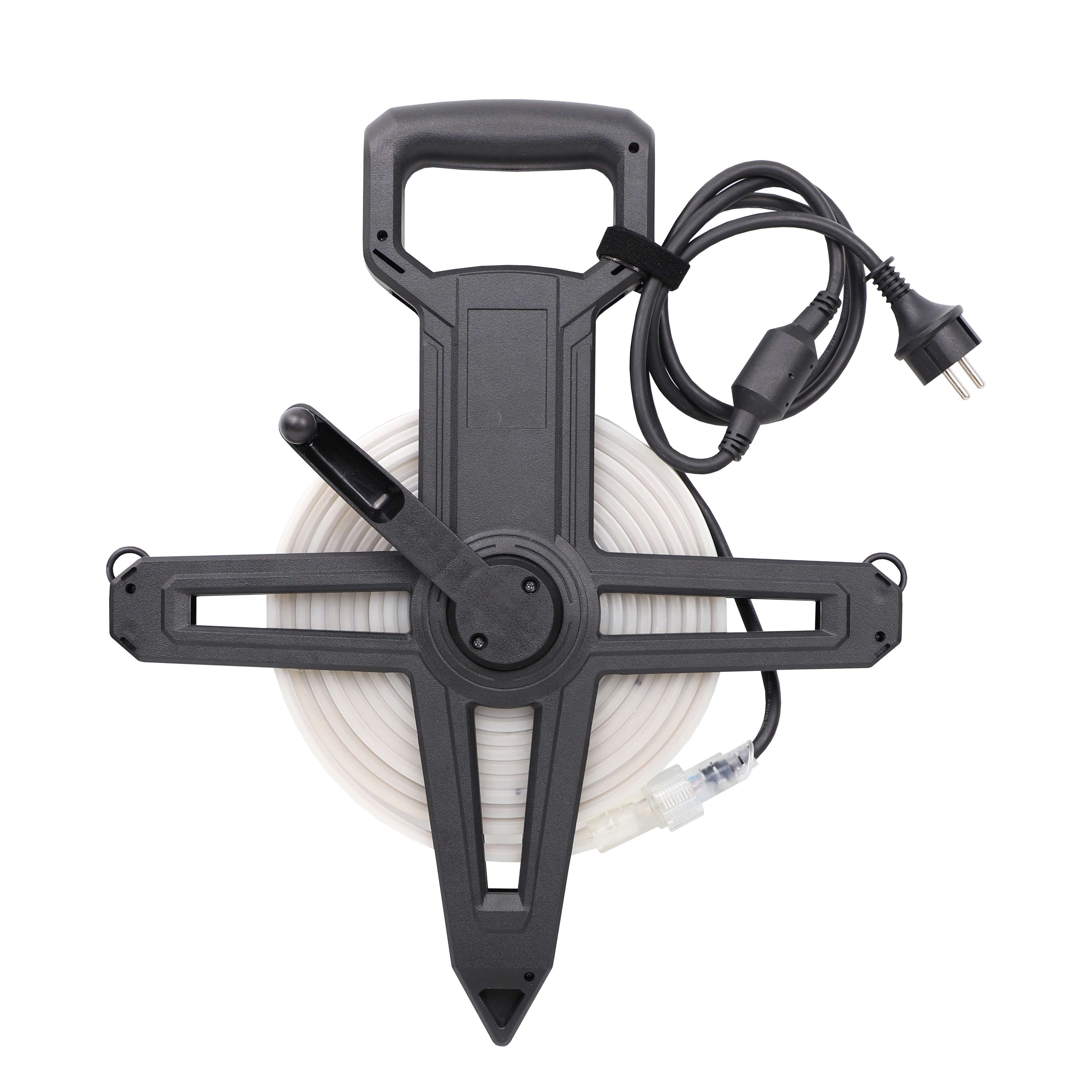

LED strip Handy Kit 230V
* It is a rollable LED strip that works directly from power outlet (230V)
* Suitable for both professional and home use
* The light strip is attached with a handy coil, from which it can be pulled out when needed
* IP65 makes the LED strip a perfect choice even in challenging and humid conditions all year round.
* General lighting in the home or cottage, construction and renovation sites and industrial areas, for example to illuminate garden fences, terraces, carports and walkways
Data of 10m slim box
Voltage: 220-240V
Length:10 meters
Width x height: 15mm x 7mm
Brightness: 100lm/m
Power: 100W - 10W/m
Color temperature: 3000K/4000K/6000K
Beam angle: 120°
IP class: IP65
Ambient temperature: -25°c til 45°c
LED type, quantity: SMD2835, 144LED/m
Lifetime: 30.000 hours (L70)
